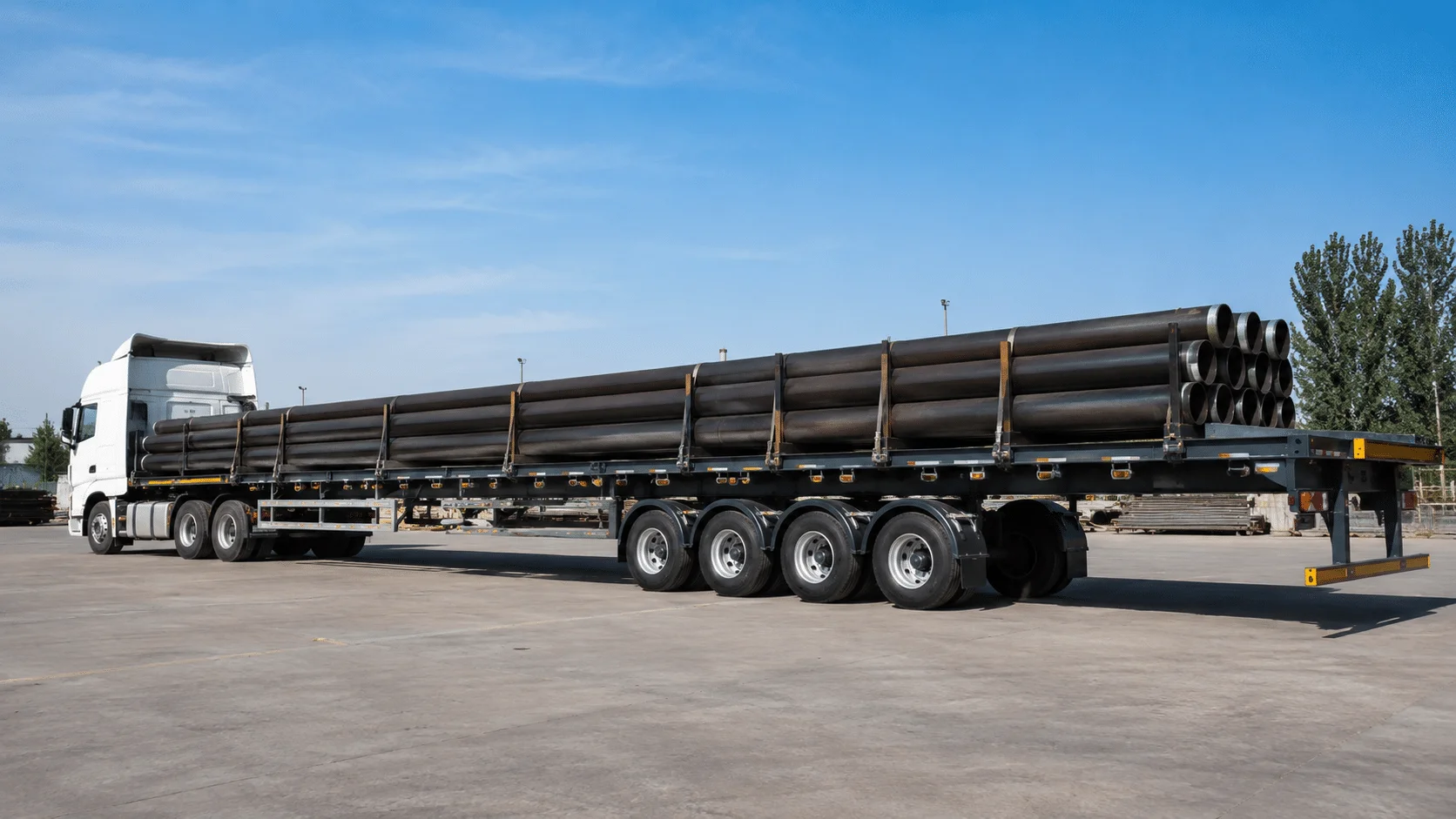

Extendable Flatbed Semi Trailer for Long Cargo

The extendable flatbed semi trailer uses a telescopic main-beam structure that allows the loading platform to increase in length when required. After the long cargo is

Application

Container, Steel, Machinery, Construction Material

Model

AFLAT-3AX-40FT

Payload

Up to 60 Tons

Product Description

The extendable flatbed semi trailer uses a telescopic main-beam structure that allows the loading platform to increase in length when required. After the long cargo is delivered, the trailer can be retracted for easier empty return and storage.

Telescopic trailers require detailed engineering because extension changes the wheelbase, turning path, frame stress and load distribution. The cargo should be supported at defined positions, and the operator must follow the approved extension and securing procedure.

AOHA can customize the extension range, locking positions, rear steering arrangement, support bolsters and cargo-securing points around the transported product. Typical applications include long pipes, bridge components, prefabricated structures and selected energy-industry equipment.

Typical Applications

━━━━

Long steel beams and bridge components
Pipes, columns and prefabricated structures
Wind-energy and utility components within design limits
Long industrial machinery frames
Oversized cargo requiring adjustable deck length

Key Advantages

━━━━

Telescopic Deck Length

The platform can extend for long cargo and retract for empty travel.

Cargo-Specific Support

Bolsters, posts and support locations can be positioned around the load drawing.

Improved Return Efficiency

A retracted trailer is easier to maneuver and may reduce empty-return length.

Heavy Structural Locking

Mechanical locking positions hold the telescopic beam at approved extension stages.

Optional Steering Support

Steering axles or hydraulic steering can be considered for long-wheelbase applications.

Integrated Securing Points

Heavy lashing rings, stake pockets and chain anchors can be installed along the deck.

Reference Specifications

━━━━

The following data is provided for website planning only. The final specification must be confirmed in the technical agreement and quotation.

Item	Reference Specification
Retracted length	Customized according to base platform requirement
Extended length	Customized according to cargo length and legal limits
Payload	Calculated from load drawing and extension condition
Axles	3, 4 or multi-axle configuration
Steering	Fixed, self-steering or hydraulic steering options
Main structure	Telescopic high-strength steel beam
Extension locking	Multiple mechanical locking positions
Platform	Steel deck or cargo-specific support beams
Suspension	Mechanical or air suspension
Brake system	Pneumatic; ABS/EBS according to configuration
Cargo securing	Heavy-duty lashing rings, posts and chains
Safety equipment	Extension markings, warning lamps and reflective panels

Optional Configurations

━━━━

Hydraulic extension assistance
Hydraulic steering
Removable cargo bolsters
Widening brackets
Front headboard
Outriggers or support legs
Wireless steering control where applicable
Custom warning and lighting package

Quality Control and Delivery

━━━━

Testing should verify telescopic movement, locking-pin engagement, frame alignment, steering response, brake operation and lighting at each approved extension position. The customer should receive an extension chart and loading instructions tailored to the final design.
